BREMBO 09.5857.10 brake disc set front axle
SKU: 09.5857.10
Description

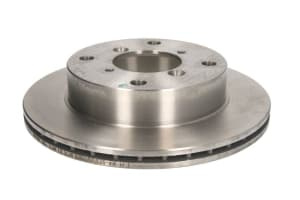

Original Brembo front brake disc for the Suzuki Swift II, Alto, Cappuccino, Chevrolet Metro and Subaru Justy II. This vented disc (Ø 231 mm) is a direct OEM replacement for a wide platform of compact Japanese and Asian-European models from the 1990s and early 2000s — popular youngtimers and small classics.
The OE number printed on the original Brembo box is 96067908 (Chevrolet), with cross-references to Suzuki numbers 5531160B20 and 5531180F00. Made in Italy.
Features
- Outside diameter: 231 mm
- Thickness: 17 mm (minimum thickness: 15 mm)
- Type: vented, non-drilled
- Fitting position: front axle
- Number of bolt holes: 4 | Centring diameter: 64 mm
- Height: 50 mm | Tightening torque: 85 Nm
- Weight: approx. 4.7 kg per disc
- Origin: Italy (Made in Italy)
- OE number on box: 96067908 (Chevrolet)
Technical specifications
Brand | Brembo |
Part number | 09.5857.10 |
Diameter | 231 mm |
Thickness | 17 mm (min. 15 mm) |
Type | Vented |
Bolt holes | 4 |
Centring diameter | 64 mm |
Height | 50 mm |
Tightening torque | 85 Nm |
Weight | approx. 4.7 kg/disc |
Position | Front axle |
Origin | Italy |
Compatible vehicles
Chevrolet Metro (1991–2003)
1.0, 1.3 — front axle
Subaru Justy II (1995–2003)
1.0, 1.3 — front axle
Suzuki Alto IV (EF, 1994–2002)
1.0, 1.3 — front axle
Suzuki Cappuccino (EA21R, 1992–1998)
0.7 — front axle
Suzuki Swift II / SF (1989–2005)
1.0, 1.3, 1.3 GTi, 1.3 4x4 — front axle
Note: Maruti Suzuki models equivalent to the Suzuki Swift II / Alto IV (e.g. Maruti 800, Zen) use the same OE numbers. Please verify the OE number on your engine or chassis plate.
OE numbers and cross-references
96067908 | Chevrolet (OE on box) |
5531160B20 | Suzuki |
5531160B21 | Suzuki |
5531160B22 | Suzuki |
5531180F00 | Suzuki / Subaru |
5531180F01 | Suzuki / Subaru |
5531180F02 | Suzuki / Subaru |
96062166 | Suzuki |
